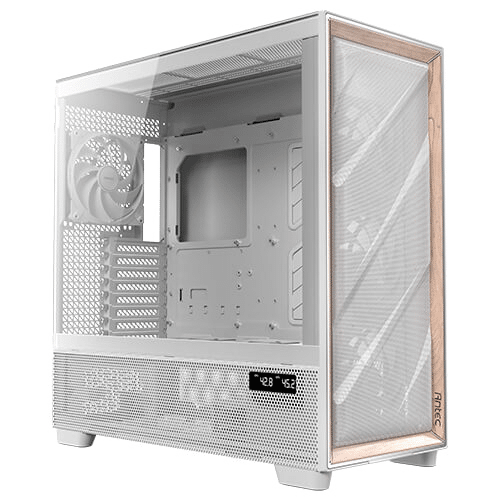

The Antec Flux Pro is a full tower case that comes with a tempered glass panel, mesh front and bottom panels for increased airflow, and 6 PWM fans for maximum cooling. 3 Antec Tranquil 140mm fans are mounted to the front, and 1 in the rear, along with 2 P12 reverse blade fans on top of the PSU shroud ensures that both the GPU and CPU will receive plenty of cooling. The Antec Flux Pro also features its unique iShift technology that allows for power supplies to mount perpendicular to the case to allow for ease of access to PSU cables. The Flux Pro also includes a built in ARGB and PWM controller that can be synced to the motherboard.
Features
Flux Pro Full Tower Case
Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.
Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.
Specifications
General Data
Model Number |
FLUX PRO-BLACK |
Dimensions |
530 x 245 x 545 mm (DWH) |
Form Factor |
Full Tower |
Materials |
Steel + Plastic + Glass + Wood |
Mainboard Support |
E-ATX (≤285mm), ATX, Micro-ATX, ITX |
Front Access & Controls |
Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1 |
Side Panel |
4mm Tempered Glass |
Drive Bays
Expansion Slots |
8 |
3.5″ /2.5″ |
4/4 |
2.5″ |
2 |
Fan Support
Front |
3 x 120mm / 3 x 140mm |
Top |
3 x 120mm / 3 x 140mm |
Power Supply Shroud |
3 x 120mm |
Bottom |
2 x 120mm / 2 x 140mm |
Rear |
1 x 120mm / 1 x 140mm |
Included Fan(s) |
3 x 140mm Tranquil PWM fans in front + 2 x 120mm P12R PWM reverse fans on PSU shroud + 1 x 140mm Tranquil PWM fan in rear |
Radiator Support
Front |
120 / 140 / 240 / 280 / 360 / 420mm |
Top |
120 / 140 / 240 / 280 / 360 / 420mm |
Power Supply Shroud |
120 / 240 / 360mm |
Bottom |
120 / 240mm |
Rear |
120 / 140mm |
Clearance
Max GPU Length |
≤ 455mm |
Max CPU Cooler Height |
≤ 190mm |
Max PSU Length |
(Include cable) ≤ 180/300mm (with HDD)
(Include cable) ≤ 470mm (without HDD)
(Not Include cable) ≤ 180mm (Side Mount) |
